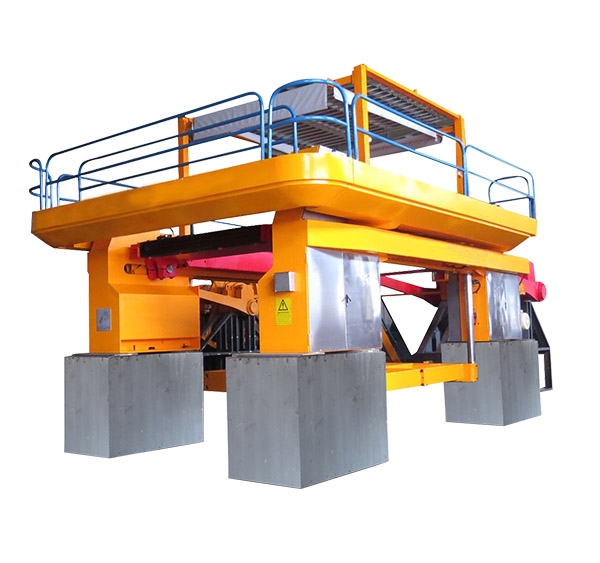

Stone Gang saw石材荒料框架锯

领跑智能制作新“石”代

Stone Gang saw石材荒料框架锯

隶属于产品: 所在区域种别:生成物库

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

首要特色
1. 接纳起落式保送台的锯切体例,并接纳变频驱动。

2. 锯架的来(lai)去偏移尊重了风压正方(fang)形(xing)导(dao)轨的布置。

3. 包容(rong)了双曲柄和双连(lian)杆布置图。

4. 共公的(de)螺旋运动杆抗精准打击电脑防(fang)防(fang)零件。

5. 电流量不可动摇小,电气借助使用(yong)期限长(zhang)。

6. 行驶内压小(xiao),节(jie)水且性能模(mo)式(shi)。

7. 这一个锯(ju)架就能够即使装置设备 100 个金刚石圆锯(ju)片。

8. 该锯架应有较高的(de)直线方程(cheng)度、出色的(ಌde)切除(chu)品质和(he)较高的(de)产(chan)品量。

9. 它更为宜用(yong)做薄款切割机片(pian)和(he)切割机卷板。

10. 接纳了带有人机界面的智能节制体系,便于操纵,可以或许监测装备的各类任务状况,并显现毛病缘由警报提醒。

Main Features

1. Adopt table lifting feeding mode for sawing, frequency conversion drive.
2. Static pressure circular guide rail structure is adopted for reciprocating swing of saw frame. 3. Adopts double crank and
double connecting rod structure.
4. Exclusive use of screw rod anti impact mechanical protection device.
5. Small current fluctuation, longer motor life.
6. Small running resistance, energy saving and power saving.
7. The saw frame can be assembled with 100 diamond saw blades.
8. The saw frame has high straightness, good cutting quality and high yield.
9. It is more suitable for ultra-thin saw blade and cutting thin plate.
10. Intelligent control system with man-machine interface is adopted for easy operation, which can monitor various working states
of𝄹 the equipmen꧒t, and display fault cause alarm prompt

TECHNICAL DATA
Model No.
HLKJ-100/S800
HLKJ-100/S800
Number of blade
pc
80
100
Blade length
mm
4400
4400
Working stroke of blade
mm
800
800
Max.cutting size of block
mm
3200x2500x200
3200x2500x200
Min.cutting thickness of slab
mm
16
16
Cutting feed
mm/h
50-400
59-400
Power of main motor
kw
110
132
Block trolley size
mm
2050x3200
2559x3200
Gross weight
kw
52000
62000
Dimensions (L x W x H)
mm
11900x5060x4960
11900x5560x4960
称号 单元 HLKJ-100/S800
锯条数 pc 100
锯条规格 mm 4400
锯条路程 mm 800
主机功率 kw 110
总功率 kw 121
可加工最大荒料尺寸 mm 3200*2000*2000
能切最薄板材厚度 mm 16
荒料车规格 mm 3200*2020
锯机形状尺寸 mm 11900*5560*4960
锯机分量 t 62
